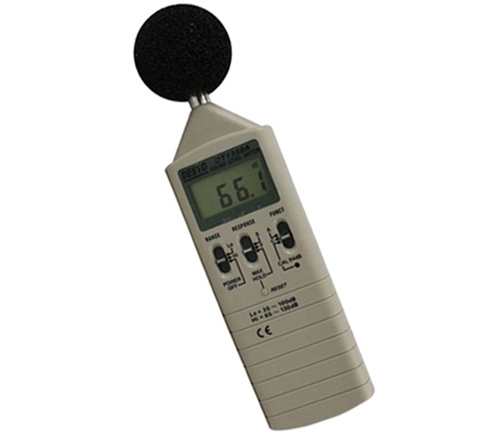

Sound Level Meter

Name:Sound Level Meter

35dB-130dB

Details
Sound Level Meter DT1350A Specifications

Measuring level range
35dB-130dB
Frequency range
31.5Hz-8KHz
Dynamic range
65dB
Resolution
0.1dB
Accuracy
±2dB
Sample Rate
2 times / sec
Measuring frequency
A frequency weighting & C frequency weighting
Measuring range
Lo: 35-100dB low range measurement
Hi: 65-130dB high range measurement
Response
S: for comparatively stable noise measurement
F: for fast varying noise measurement
Output
AC=0.65Vrms/dB, Output Impedance≤600Ω
DC=10mV/dB,Output Impedance≤100Ω
Output signal type
Two-channel analog signal output headphone jack
Display
3 1 / 2 LCD display
Correction
Internal 94.0dB correction
Measurements Lock
Maximum noise value lock
Operation height
below 2000 meters
Operating temperature
0℃-40℃
Operating Humidity
10%RH-90%RH
Dimensions
240mm (L) x 68mm (W) x 25mm (H)
Weight
≈210g(With battery)
Attachment
Windscreen, debugging batch, battery, manual
