Digital Force Gauge B Series

Name:Digital Force Gauge B Series

Details

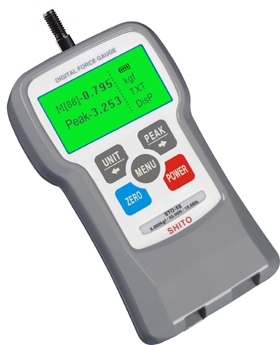

SHITO Digital Force Gauge B Series
SHITO Digital Force Gauge B Series has eight models,Measured values as low as 200 gf, as much as 50 kgf,mainly for testing tension, pressure, plug power, breaking edge, open edge, curved edge, open edge, tensile strength, bonding strength, elongation, hardness, such as switch contacts,Measuring a wider and more powerful can meet your various force measurement need, is your good assistant force measurement.
Main features of SHITO Digital Force Gauge B Series:
◆ Four liquid crystal display;
◆ The high accuracy ±0.2%;
◆ Up to 2,000 times/SEC sampling rate;
◆ Automatic memory 100 measured values;
◆ Set the measuring upper and  lower;
◆ Real-time display measured values and measured curve;
◆ View each curve measured values ;
◆ Free setting the scan time;
◆ The screen can flip display;
◆ Set automatic shutdown of time;
◆ Set up automatic peak measuring time;
◆ Kgf.cm / Lbf.in / N.m conversion measurement;
◆ Automatic charge control;
◆ Battery consumption shows that elegant appearance;
◆ Take RS - 232 interfaces connected to the computer;
◆ Quadratic programming;
Technical Specification
Model
Capacity
Graduation
Accuracy
Output
Programming
STO-0.2B
200.0gf
2.000N
8.00oz
0.1gf
0.001N
0.01oz

±0.2%
RS-232
quadratic
STO-0.5B
500.0gf
5.000N
16.00oz
0.1gf
0.001N
0.01oz

±0.2%
RS-232
quadratic
STO-1B
1000gf
10.00N
2.000lb
1gf
0.01N
0.001lb

±0.2%
RS-232
quadratic
STO-2B
2.000kgf
20.00N
5.000lb
0.001kgf
0.01N
0.001lb

±0.2%
RS-232
quadratic
STO-5B
5.000kgf
50.00N
10.00lb
0.001kgf
0.01N
0.01lb

±0.2%
RS-232
quadratic
STO-10B
10.00kgf
100.0N
20.00lb
0.01kgf
0.1N
0.01lb

±0.2%
RS-232
quadratic
STO-20B
20.00kgf
200.0N
50.00lb
0.01kgf
0.1N
0.01lb

±0.2%
RS-232
quadratic
STO-50B
50.00kgf
500.0N
100.0lb
0.01kgf
0.1N
0.1lb

±0.2%
RS-232
quadratic
