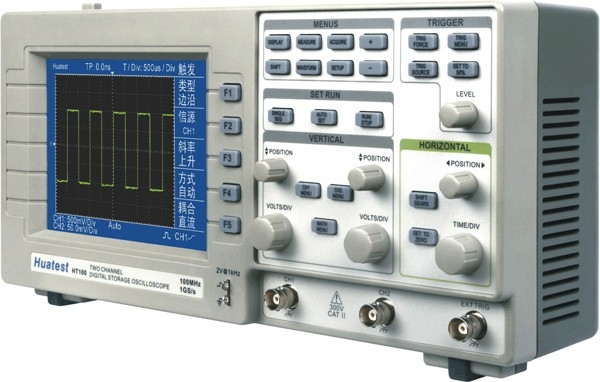

Digital Storage Oscilloscopes

Name:Digital Storage Oscilloscopes

300MHz-25MHz

Details
    Huatest is a China manufacturer of digital storage oscilloscopes. Huatest use the already obtained national Invention patent technology to produce Huatest digital storage oscilloscopes. Huatest digital storage oscilloscopes are with the trigger signal waveform to obtain accurate, reliable, stable performance, high sample rate etc, the bandwidth from 25MHz to 300MHz, the sampling rate high to 1.0GS / s, they have been widely used in scientific and technological research and development, education and training, manufacturing, industrial control, mechanical and electrical testing and quality control areas.


       300MHz-60MHz Color Oscilloscope Specifications
Model
HT300A
HT200A
HT150A
HT100A
HT60A
Bandwidth
300MHz
200MHz
150MHz
100MHz
60MHz
Channels
2
2
2
2
2
Realtime Sample Rate
1.0GS/s
1.0GS/s
1.0GS/s
1.0GS/s
1.0GS/s
Rise Time
<1.2ns
<1.7ns
<2.4ns
<3.5ns
<5.8ns
Time Base Range
1.0ns/div-50s/div
2.5ns/div-50s/div
2.5ns/div-50s/div
5ns/div-50s/div
5ns/div-50s/div
Display
Color
Color
Color
Color
Color
Mathematic Functions
FFT, +, -, ×
Connection
USB
Size
153mm×320mm×98mm
Weight
Net Weight: 1.8 kg     Gross Weight: 2.6 kg


       100MHz-25MHz Color Oscilloscope Specifications
Model
 HT100B
 HT60B
HT50A
 HT40A
 HT25A
Bandwidth
100MHz
60MHz
50MHz
40MHz
25MHz
Channels
2
2
2
2
2
Realtime Sample Rate
500MS/s
500MS/s
500MS/s
500MS/s
250MS/s
Rise Time
<3.5ns
<5.8ns
<7.8ns
<8.8ns
<14ns
Time Base Range
5ns/div-50s/div
5ns/div-50s/div
10ns/div-50s/div
10ns/div-50s/div
25ns/div-50s/div
Display
Color
Color
Color
Color
Color
Mathematic Functions
FFT, +, -, ×
Connection
USB
Size
153mm×320mm×98mm
Weight
Net Weight: 1.8 kg     Gross Weight: 2.6 kg


       100MHz-25MHz Mono Oscilloscope Specifications
Model
 HT100
 HT60
HT60C
 HT40
 HT25
Bandwidth
100MHz
60MHz
60MHz
40MHz
25MHz
Channels
2
2
2
2
2
Realtime Sample Rate
1.0GS/s
1.0GS/s
500MS/s
500MS/s
250MS/s
Rise Time
<3.5ns
<5.8ns
<5.8ns
<8.8ns
<14ns
Time Base Range
5ns/div-50s/div
5ns/div-50s/div
5ns/div-50s/div
10ns/div-50s/div
25ns/div-50s/div
Display
Mono
Mono
Mono
Mono
Mono
Size
153mm×320mm×98mm
Weight
Net Weight: 1.8 kg     Gross Weight: 2.6 kg
