SHITO External Digital Torque Meter（C-type）

Description

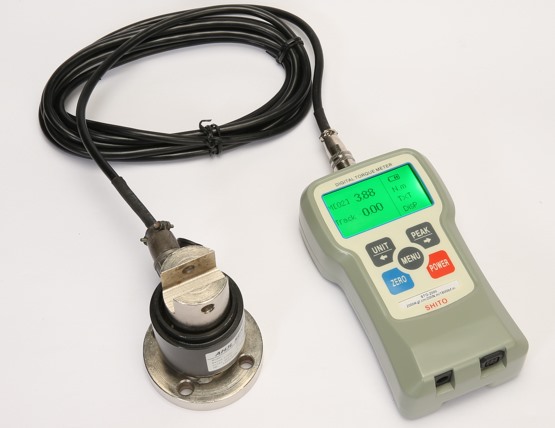

SHITO External Digital Torque Meter（C-type）

SHITO External Digital Torque Meter C-type is a portable force measuring instrument, which is an intelligent metering tester for accurately and conveniently measuring and detecting various torques.

■ Main features:

l
4 bit LCD backlight display

l High precision of + 0.5%

l The sampling rate up to 2000 times per second

l Automatic storage of 100 measured values

l The upper and lower limits of the measurement can be set

l Real-time display of measured values and measurement curves

l View each measurement value of the curve

l Free setting scanning time

l Screen flip display

l Automatic shutdown time can be set

l Automatic peak measurement time can be set

l Kilogram / Newton / pound conversion test

l Automatic charge control

l Battery power display

l Connect the computer with the RS-232 interface

l Two programs can be programmed

■ Technical Specification:

Model	Measuring rang	Graduation	Accuracy	Responsive Frequency	Interface	Programming
STO-10C	10.00kgf.cm 1.000N.m 9.00lbf.in	0.01kgf.cm 0.001N.m 0.01lbf.in	±0.5%	2000Hz	RS-232	Quadratic
STO-20C	20.00kgf.cm 2.000N.m 18.00lbf.in	0.01kgf.cm 0.001N.m 0.01lbf.in	±0.5%	2000Hz	RS-232	Quadratic
STO-50C	50.00kgf.cm 5.000N.m 45.00lbf.in	0.01kgf.cm 0.001N.m 0.01lbf.in	±0.5%	2000Hz	RS-232	Quadratic
STO-100C	100.0kgf.cm 10.00N.m 90.0lbf.in	0.1kgf.cm 0.01N.m 0.1lbf.in	±0.5%	2000Hz	RS-232	Quadratic
STO-200C	200.0kgf.cm 20.00N.m 180.0lbf.in	0.1kgf.cm 0.01N.m 0.1lbf.in	±0.5%	2000Hz	RS-232	Quadratic
STO-500C	500.0kgf.cm 50.00N.m 450.0lbf.in	0.1kgf.cm 0.01N.m 0.1lbf.in	±0.5%	2000Hz	RS-232-	Quadratic
STO-1000C	1000kgf.cm 100.0N.m 900lbf.in	1kgf.cm 0.1N.m 1lbf.in	±0.5%	2000Hz	RS-232	Quadratic
STO-2000C	2000kgf.cm 200.0N.m 1800lbf.in	1kgf.cm 0.1N.m 1lbf.in	±0.5%	2000Hz	RS-232	Quadratic
STO-5000C	5000kgf.cm 500.0N.m 4500lbf.in	1kgf.cm 0.1N.m 1lbf.in	±0.5%	2000Hz	RS-232	Quadratic

■ Other Indicators:

1. Battery: 7.2V Ni-MH battery
2. Operating temperature range: 0℃—50℃
3. Size: 145mm × 75mm × 38mm
4. Net Weight: 2kg, Gross Weight: 3kg
5. Charger: Input AC 220V/50Hz, 0utput DC 12V/200mA
