SHITO Digital Torque Meter（K-type）

Description

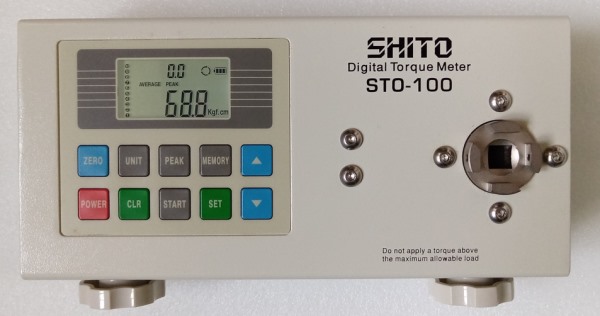

SHITO Digital Torque Meter（K-type）

SHITO Digital Torque Meter K-type is an intelligent measuring instrument for testing and detection of various torque tools, mainly used to measure various electric screwdriver, pneumatic screwdrivers, torque screwdrivers and torque wrenches, the torque meter can also measure other products or tools, such as: lamp caps, bottle caps, various clamps. SHITO Torque Meter is simple operation, high precision, portable, widely used in power tools, pneumatic tools, lighting, medicine, cosmetics and other products and service enterprises.

SHITO Digital Torque meter K-type captures peak with a sampling rate of up to 5000Hz, it is more accurate to measure and lock the peak data of the testing process; it is a more practical for first peak "F.PEAK" detection function to detect and lock the testing process of the first peak torque.

SHITO Digital Torque Meter K-type has seven models STO-5, STO-10, STO-20, STO-30, STO-50, STO-100, STO-200 for you to choose.

■ Main features:

1. Peak sampling rate of up to 5000Hz.

2. The first peak "F.PEAK" detection function: measuring and lock the first peak torque testing process.

3. "START" Measurement: Clear PEAK value, jumped into a new storage format and clear its original measurement, start a new measurement.

4. Set upper and lower limits of detection values detected values, and automatic alarm.

5. Torque orientation.

6. 10 sets of measurement data can be stored.

7. Three kinds of torque units Kgf.cm / Lbf.in / N.m automatically converted.

8. Automatic calculation of the average value of the stored data.

9. Three minutes without operating automatic shutdown of the power design.

10. White backlight.

11. Ni-MH battery power display.

12. Automatic control of the charge.

13. RS-232 interface with the computer, automatic and manual transmission (optional).

■ Technical Specification

Model	Measuring rang	Accuracy	Responsive Frequency	Graduation	Interface
STO-5	0.1-5.000kgf.cm 0.01-0.5000N.m 0.1-4.500Lbf.in	±0.5% FS	5000Hz	0.002kgf.cm 0.0002N.m 0.002Lbf.in	RS-232
STO-10	0.15-10.00kgf.cm 0.015-1.000N.m 0.15-9.00Lbf.in			0.01kgf.cm 0.001N.m 0.01Lbf.in	RS-232
STO-20	0.3-20.00kgf.cm 0.03-2.000N.m 0.3-18.00Lbf.in			0.01kgf.cm 0.001N.m 0.01Lbf.in	RS-232
STO-30	0.35-30.00kgf.cm 0.035-3.000N.m 0.35-27.00Lbf.in			0.01kgf.cm 0.001N.m 0.01Lbf.in	RS-232
STO-50	0.5-50.00kgf.cm 0.05-5.000N.m 0.5-45.00Lbf.in			0.02kgf.cm 0.002N.m 0.02Lbf.in	RS-232
STO-100	1.5-100.0kgf.cm 0.15-10.00N.m 1.5-90.0Lbf.in			0.1kgf.cm 0.01N.m 0.1Lbf.in	RS-232
STO-200	3.0-200.0kgf.cm 0.3-20.00N.m 3.0-180.0Lbf.in			0.1kgf.cm 0.01N.m 0.1Lbf.in	RS-232

■ Other Indicators:
    1. Battery: 7.2V Ni-MH battery
    2. Charge for the use of time: 50 hours
    3. Charging time: <8 hours
    4. Size: 230mm × 123mm × 65mm
    5. Net Weight: 2.2kg, Gross Weight: 4.6kg
    6. Charger: Input AC 220V/50Hz, 0utput DC 12V/300mA
