Cap Torque Meter

Description

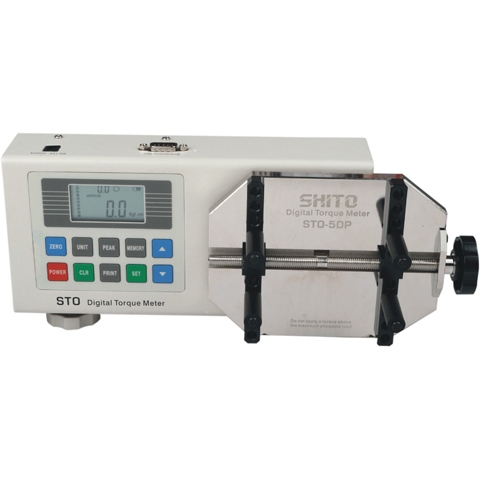

SHITO Cap Torque Meter

SHITO Cap Torque Meter has three models STO-10P, STO-50P, STO-100P, widely used in lighting, cosmetics, medical supplies, food, chemical industry, electronics and other fields products torque test. SHITO Cap Torque Meter has high precision, accuracy at ± 0.5% +1 digit within, Kgf.cm / N.m /lbf.in conversion measurement, three minutes without operation of automatic shutdown of the power design, maintain peak function, automatic alarm settings, torque direction showed that automatic charging, Ni-MH battery power display, storing and printing 10 test data, automatically calculating the average of storing data that can print at the scene measurement curve.

SHITO Cap Torque Meter Technical Specification

Model	Measuring rang	Accuracy	Responsive Frequency	Measuring diameter
STO-10P	0.15-10.00Kgf.cm 0.015-1.000N.m 0.15-9.00lbf.in	±0.5%+1 digit	600Hz	¢18-150mm
STO-20P	0.3-20.00kgf.cm 0.3-2.000N.m 0.3-18.00Lbf.in	±0.5%+1 digit	600Hz	¢18-150mm
STO-50P	0.5-50.0Kgf.cm 0.05-5.00N.m 0.5-45.0lbf.in	±0.5%+1 digit	600Hz	¢18-150mm
STO-100P	1.5-100.0Kgf.cm 0.15-10.00N.m 1.5-90.0lbf.in	±0.5%+1 digit	600Hz	¢18-150mm

  Other Indicators:
    1. Battery: 7.2V Ni-MH battery
    2. Charge for the use of time: 50 hours
    3. Charging time: <8 hours
    4. Size: 230mm × 123mm × 65mm
    5. Net Weight: 3.4kg, Gross Weight: 5.8kg
    6. Charger: Input AC 220V/50Hz, 0utput DC 12V/300Ma
